Yamaha Jet Boat Transducer Errors – What You Need to Know

April '26 Yamaha Jet Boat Transducer Errors – What You Need to Know

Hey everyone! We've been seeing a lot of posts lately about transducer failures on Yamaha jet boats, so we wanted to put together a helpful resource — and yes, a little self-promotion too. 😄

Accessing the Transducer

On almost all Yamaha jet boats, the transducer is accessed through the clean-out port tray cover. Removing this cover means you'll need to remove and replace the silicone seal to prevent water intrusion into the boat. The transducer sits inside a housing that is glued to the hull — but the transducer itself can be easily removed and replaced. In fact, most boats came from the factory with a transducer plug for exactly this reason.

The wiring connector for the transducer on nearly all 2017+ boats is located in the far top-left corner of the engine bay — it's a 4-pin connector. (See photo)

Which Transducer Does Your Boat Have?

The factory transducer on most newer Yamaha jet boats is a modified Airmar DT800. Some boats may be equipped with a DST800 variant, which measures Depth, Speed, and Temperature.

No speed reading but depth is working? You likely have a broken paddle wheel — this is pretty common and an easy fix. A paddle wheel replacement kit runs around $20 online: 👉 Paddlewheel Kit for DST800 – West Marine

How Transducer Failure Shows Up

Transducer failure typically presents as:

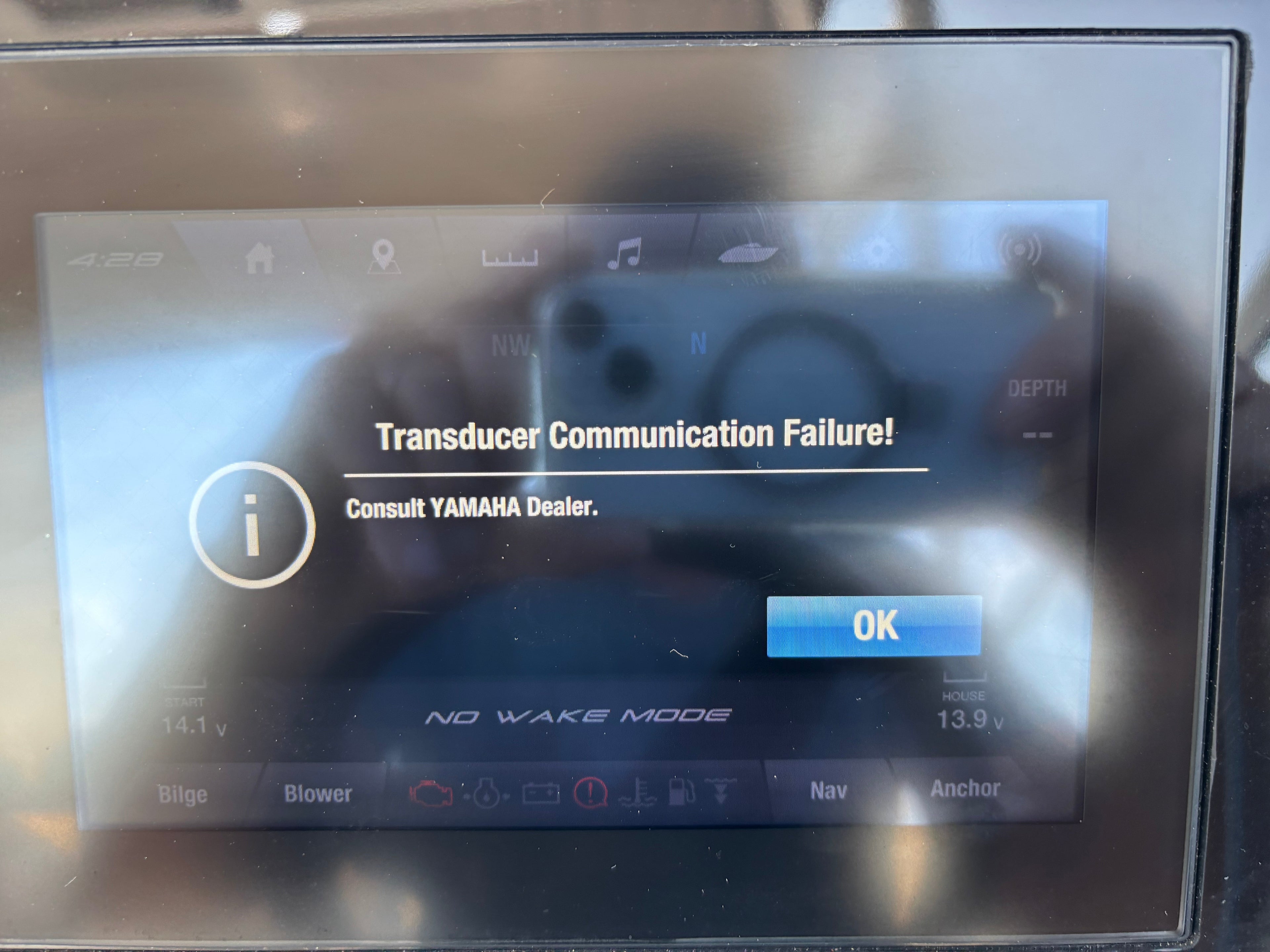

• COMM errors or NMEA 2000 network errors
• No depth reading
• No temperature reading

Note: A failed swim deck stereo controller can cause the same error codes, though this is far less common.

Replacement Options

For a complete transducer failure, you can use the generic Airmar version of the transducer — it's readily available and more affordable than the Yamaha-branded unit. The catch? It uses an NMEA 2000 connector rather than the factory Yamaha 4-pin plug.

That's where we come in. 🙌

We offer a plug-and-play T-harness that adapts the NMEA 2000 connector to the factory Yamaha wiring — no splicing required. In theory, this allows you to use any compatible transducer with your boat. Our harness also enables integration of the factory transducer into an aftermarket MFD (Multi-Function Display).

👉 JB Solutions – Yamaha Jet Boat Transducer T-Harness

For 19' Owners Without a Depth Gauge

If you own a 19' Yamaha jet boat and don't have a depth gauge, here's a great upgrade path:

1. Swap to a DST800 transducer
2. Use our T-harness for a clean install
3. Add a compact NMEA 2000 depth display like the Veratron VLFlex 52mm gauge

👉 Veratron VLFlex 52 NMEA 2000 Display – The GPS Store

Video Walkthrough

One of our customers and local forum members put together a great video showing the full transducer replacement process — definitely worth a watch before you dive in:

As always, feel free to reach out with any questions. We're happy to help you get your boat dialed in!

– The JB Solutions Team jbsolutions.store
